TII In-Line« Coaxial Surge Protector Power Extractor: Pro-Tractor (Patent Applied for)





FEATURES

bulletUnique In-Une Coaxial Gas Tube Surge Arrester
bulletExtracts Low Frequency AC Power
bulletEliminates Need For Separate AC Power Lines/Protection
bulletHFC Or FTTC Broadband Network Application
bulletImproves Network Reliability And Survivability
bulletProvides Ughtning Or Powerline Fault Protection
bulletImpedance Matched To 75 ohms
bulletTransparent To AnalogiDigital Bi-directional Transmission
bulletIntegral Fallshort Mechanism
bulletReturn Loss Better Than -20dB
bulletInsertion Loss <1.0dB
bulletFrequency Range 5MHz - 1.0GHz
bulletUL Listed


DESCRIPTION

TII's state-of-the-art ln-Line« Coaxial Surge Protector and Power Extractor (PRO-TRACTOR) is specifically designed for tomorrow's Broadband Hybrid Fiber/Coax (HFC) and Fiber To The Curb (FTTC) distribution networks. It will protect personnel and equipment from lightning and power induced excess voltage surges on powered coax cable drops, when installed in suitable Network Interface Devices.

It eliminates the need for separate AC power lines and AC protectors. TII's coaxial surge arrester will greatly increase network reliability and significantly improve survivability. The AC power is then used to power RF electronic components.

Coaxial Surge Protection section limits the magnitude of unwanted induced high voltage surge currents that may appear on the center conductor of a coaxial cable.

The unique InLine"' arrester design is impedance matched to 75 ohms and is transparent to all analog or digital bi-directional signals transmitted at high frequencies from 5MHz to 1.0GHz. TII' s coaxial gas tube arrestor is equipped with an integral failshort mechanism; in the event of power-cross surges. The breakdown voltage of the arrestor is low enough to limit even the smallest transient surges. TII's PRO TRACTOR power extraction section consists of Hi pass and low pass filter combinations - that allow RF signals to stay on the coaxial center conductor while the low frequency AC power is extracted.

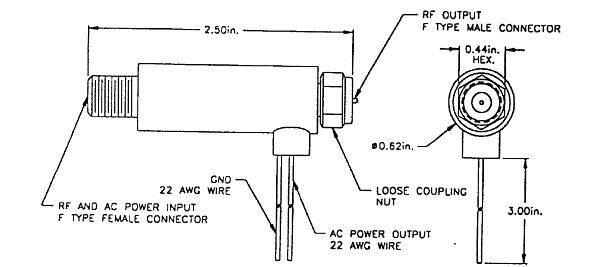

The device is robust in design, with a metallic housing that provides adequate EMI shielding. The housing is environmentally sealed against moisture and humidity that is normally encountered in above ground outside plant enclosures. The PRO-TRACTOR module comes equipped with standard CATV approved "F" type coaxial connectors and suitable connections for AC power.

R.F. PERFORMANCE:

1. CHARACTERISTIC IMPEDANCE

2. FREQUENCY RANGE

3. INSERTION LOSS

4. RETURN LOSS 5MHz- 1GHz

5. VSWR 5MHz - 1GHz

PROTECTION

1. DC BREAKDOWN &COPY; 2000V/SEC

2. IMPULSE BREAKDOWN @ 100V/SEC

3. INSULATION RESISTANCE

*4. SURGE LIFE:

A. 10A, 10/1000 Ásec
B. 100A, 10/1000 Ásec
C. 300A, 10/1000 Ásec
D. 5000A, 5/20 Ásec

5. AC LIFE:

A. 5A, 1000 VAC, 1 SEC
B. 1A, 1000 VAC, I SEC

6. FAILSHORT: 30A, 1000 VAC

7. OPERATING TEMPERATURE



 75 OHMS

5MHz - 1.0GHz

<0.1 dB

>-24 dB

<1:1.160



150 - 300 VOLTS

450 VOLTS

>100 MEGOHMS



>1500 SURGES
> 100 SURGES
>50 SURGES
>10 SURGES



>5 OPERATIONS
>60 OPERATIONS

>15 MINUTES

-40oC TO +65oC (-40oF TO +149oF)

*Figures given above are for service life only. Check with office for end of life limits.
