Polyphaser dc injector/dc Path

IS-MR50LNZ SURGE PROTECTION SERIES


APPLICATION:

Lightning protection for GPS receivers with active antennas and tower top preamplifiers


FEATURES

bullet50 Ohm models, 1.2GHz to 2.0GHz
bulletProtects in-line amplifiers and GPS receivers
bulletProvides positive and reverse voltage protection
bulletLow loss and low VSWR
bulletMulti-strike capability
bulletLow strike throughput energy
bulletNot weather resistant
bulletWeatherize using WK-1
bullet1/8-8 stainless steel hardware
bulletN silver shell and gold center pin
bulletBulkhead mounting grounding (flange mount adapter)

Options: Weatherized version available Mil Specs: Many - call with requirements

TEN YEAR WARRANTY

SPECIFICATIONS:

Surge: 20kA IEC 1000-4-5 8 20Ás waveform
Turn-on: +7, -1 Vdc for IS-MR50LNZ+6
               ▒17, -l Vdc for IS-MR50LNZ+15
Turn-on Time: 4ns for 2kV ns
User Current: 20A dc continuous

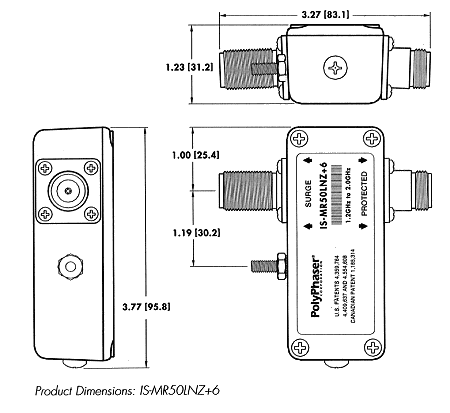

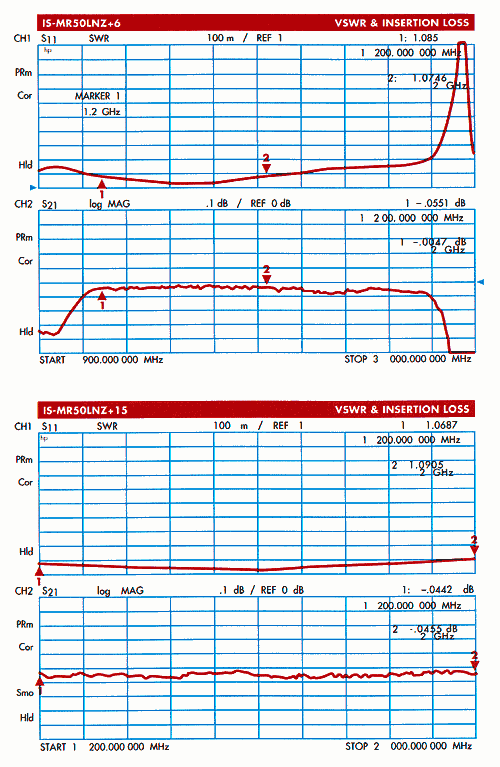

VSWR: Insertion Loss: Temperature: -45oC to +85o
Storage/Operating +50oC
Vibration: 1G up to 100Hz


ORDER INFORMATION:

IS-MR5OLN+6 N connectors, Bulkhead mounting*
Frequency Range 1 2GHz to 2 0GHz
Throughput Energy (typical) 58

IS-MR5OLNZ+6/W N connectors, Bulkhead mounting*
Frequency Range 1.2GHz to 2.0GHz
Throughput Energy 58 0ÁJ

IS-MR5OLNZ+15 N connectors, Bulkhead mounting*
Frequency Range 1.20Hz to 2.0GHz
Throughput Energy

Add suffix -MA for male antenna part connector
      -ME for male equipment part connector
Flange Mount Adapter available
(W) Weatherized version Energy based an 6kV/ 3kA 8/20Ás
waveform
