PolyPhaser RF Coupled Shield/dc Blocked

IS-IE50*U SERIES - ISOLATED EQUIPMENT PORT COAXIAL SURGE PROTECTORS


APPLICATION:

Where the best surge protection is a must. This unique PolyPhaser is one that not only has a dc block for the center conductor but also blocks the shield's surge energy from going to your equipment chassis. This is the ultimate in protection and prevents ground loops for proper single point grounding.

bulletRF coupled shield with >2kVdc breakdown
bulletLarge bandwidths
bulletTransceive but not for combiner output
bulletBulkhead mounting grounding (see flange mount adapter)
bulletMulti-strike capability
bulletLow throughput energy
bulletHoused use only aluminum enclosure
bulletNot weather resistant
bulletWeatherize using WK-1
bullet18-8 stainless steel hardware
bulletN silver shell and gold center pin

Mil Specs: Many - call with requirements.

TEN YEAR WARRANTY

SPECIFICATIONS:

Surge: 50kA IEC 1000-4-5 8/20Ás waveform 500 Joules
20kA for IE-ML series
Turn-on: 600Vdc ▒20% L models
1200Vdc ▒20% H models
Turn-on Time: 2.5ns L; 7ns H; for 2kV/ns

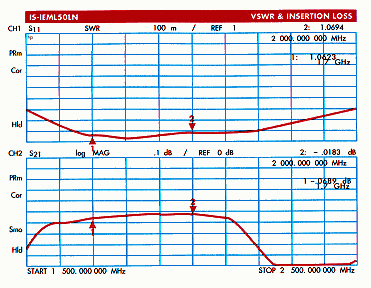

VSWR: <1.1 to 1 over frequency range
Insertion Loss: <0.1 dB over frequency range
Temperature: -50oC to +85oC Storage/Operating +50oC
Vibration: 1G up to 100Hz



ORDER INFORMATION:

UHF CONNECTORS (Female)
IS-IE50LU-CO Throughput Energy (typical): 4.70mJ
Frequency Range: 1 .5MHz to 400MHz
Max. Power: HF 2kW, VHF 375W, UHF 125W

IS-IE50HU-CO Throughput Energy (typical): 4.70mJ
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 3kW, VHF 500W, UHF 250W

IS-IE50LU-C1 Throughput Energy (typical): 1.10mJ
Frequency Range: 50MHz to 500MHz
Max. Power: VHF 375W, UHF 125W

IS-IE50HU-C1 Throughput Energy (typical): 1.10mJ
Frequency Range: 50MHz to 500MHz
Max. Power: VHF 500W, UHF 250W

ORDER INFORMATION: N CONNECTORS (Female)
IS-IE50LN-CO Throughput Energy (typical): 4.70mJ
Frequency Range: 1 .5MHz to 400MHz
Max. Power: HF 2kW, VHF 375W, UHF 125W

IS-IE50HN-CO Throughput Energy (typical): 4.70mJ
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 3kW, VHF 500W, UHF 250W

IS-IE50LN-C1 Throughput Energy (typical): 1.10mJ
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 375W, UHF 125W

IS-IE50HN-C1 Throughput Energy (typical): 1.10mJ
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 500W, UHF 250W

IS-IE50LN-C2 Throughput Energy (typical): 137ÁJ
Frequency Range: 125MHz to 1GHz
Max. Power: VHF 375W, UHF (low) 125W, 800MHz to 1GHz 50WW

IS-IE50HN-C2 Throughput Energy (typical): 854ÁJ
Frequency Range: 125MHz to 1GHz
Max. Power: VHF 500W, UHF(1ow) 250W, 800MHz to 1GHz 125W

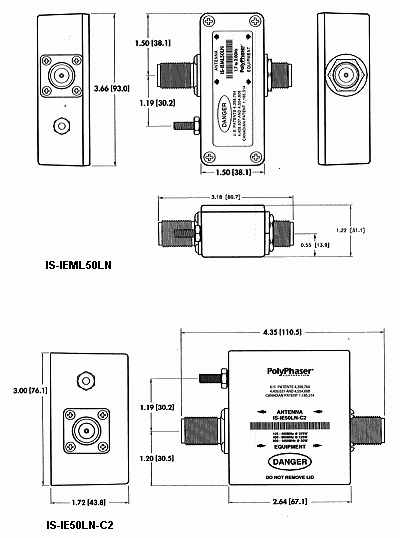

IS-IEML50LN Throughput Energy (typical): 0.20ÁJ
Frequency Range: 1.7GHz to 2.00Hz
Max. Power: 100W

IS-IEMH50LN Throughput Energy (typical): 59.0nJ
Frequency Range: 2.0GHz to 2.3GHz
Max. Power: 100W

Choose lowest throughput energy for desired frequency.
Energy based on 8/20Ás waveform.
Add suffix: -MA for male connector.
