PolyPhaser dc Blocked Filters

IS-CF50 SERIES - CELLULAR COMBINER PROTECTOR


APPLICATION:

Combiner transmit and/or receive only.

bulletMulti-channel transmit, 750W max single channel
bulletIndustry's lowest throughput energy
bulletMaintenance free
bulletMulti-strike capability
bulletNo gas tubes dc blocked

TEN YEAR WARRANTY


SPECIFICATIONS:

Surge: 20kA IEC 1000-4-5 8/20Ás waveform 138 Joules
Frequency Range: 800MHz to 900MHz

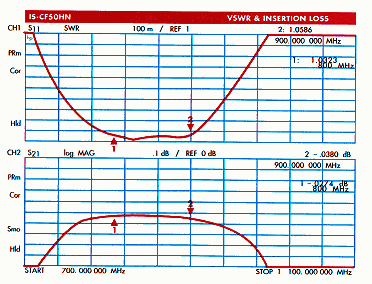

VSWR: </=1.1 to 1 over frequency range
Insertion Loss: <0.05dB typical </= 1 dB maximum
Power: 750W single channel
Throughput Energy: </=5ÁJ typical for 3kA @ 8/20Ás waveform
Temperature: -40oC to +85oC Storage/Operating
Vibration: 1G up to 100Hz

ORDER INFORMATION:

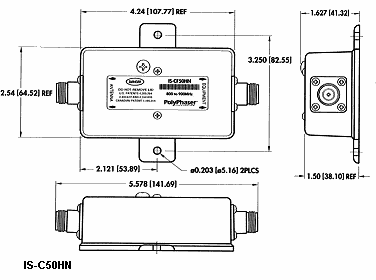

IS-CF50HN N connector (female), surface mounting

IS-CF50HD DIN connector (female), surface mounting

Add suffix -MA for male antenna port connector
-ME for male equipment port connector
