EDCO Lanblk Telephone Protectors

M215 and M216

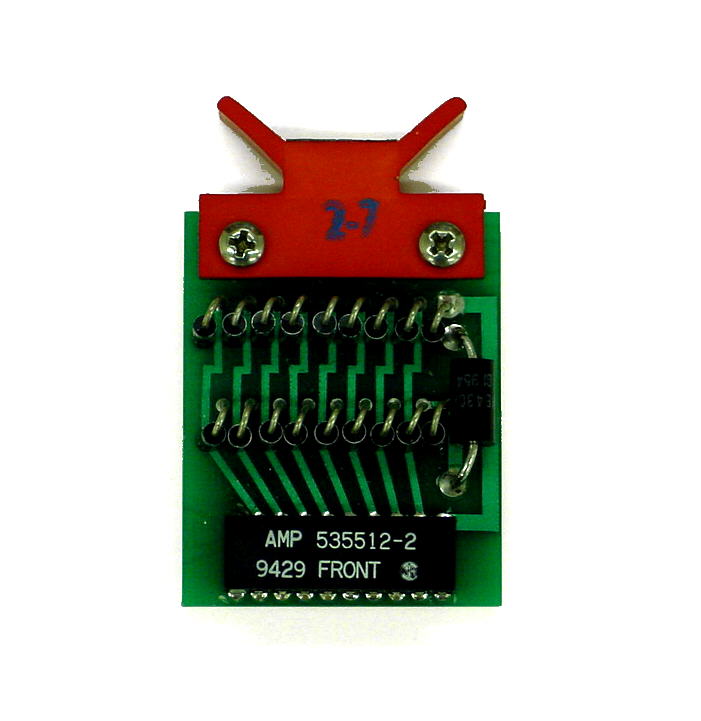

Digital Telephone Module M215

Max Peak Signal Voltage………….............43V
Breakdown Voltage………………................50V
Max Pk Pulse Current (10 x 1000m s)….35A
Capacitance (typ.) …………………..........…30 pf
Response Time…………….......................<1ns
Series Resistance………………...........……….0 W
Dimensions (H x L)………......…2.50" x 1.375"
Color Code (Handle)……………..........……..Red
UL Listing……………………….................…….497B

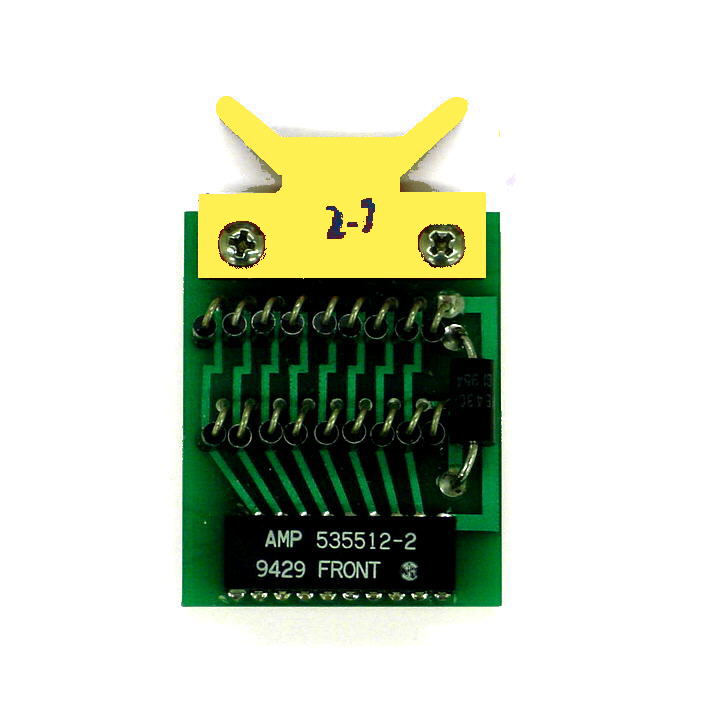

Analog Telephone Module M216

Max Peak Signal Voltage………......…...180V
Breakdown Voltage……………..........……260V
Max Pk Pulse Current (8 x 20m s)…...150A
Capacitance (typ.) ............……………….30 pf
Response Time…………………............……<1ns
Series Resistance……………….................0 W
Dimensions (H x L)………......2.50" x 1.375"
Color Code (Handle)………….......…...Yellow
UL Listing………………………...............…..497B
