TELEPHONE
5-Pin Modules

6ss Series



Description:

The C6SS series of 5 pin solid state protector modules are designed to provide superior transient and power fault protection for most Secondary or "Off-hook" applications. The characteristics of the SIDACTOR solid state protector are far superior to conventional solid state technology in speed of response to faults and are virtually immune to overshoot, aging, and repeated tripping within rated limits. Normal breakdown voltage operation for the C6SS is 60 - 95 VDC (nominal 80 VDC).

Application:

The C655 series is well suited to SLIC (Subscriber Line Interface Circuit) applications and other similar secondary protection requirements where the ring voltages are not seen (Off-hook state). Other potential applications are with purely digital line applications such as ISDN. In SLIC protection applications, a pair of diodes is required to steer positive voltages to ground.

Features & Benefits

bulletSIDACTOR technology provides nanosecond response time
bulletLonger lifespan than conventional solid state or gas technologies
bulletExternal failsafe mechanism which permanently grounds module under sustained high current conditions
bulletReduced "let through" of dangerous transients
bulletReduced service calls
bulletSafe mode operation in adverse situations
bulletUL listed Documented safe performance

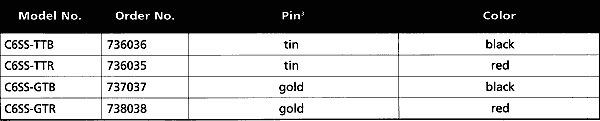

ORDERING INFORMATION

Circa 6ss

SPECIFICATIONS




  C6SS



  C6SS

  DC Breakdown (nominal)



Capacitance


 @100V/µsec

80Vdc (60-95V)

1Vrms@1KHZ, 50VDC

<100pf


  Peak Pulse Current (max)1



  Insulation Resistance



 @ 8x20 µsec

200A

@50VDC

>100M ohms

@10x 160 µsec

150A



@10 x 1000 µsec

75A

Fail- safe Operation




@1.0 A

<50 sec
  Holding Current

150 (min)

 @5.0 A

<15 sec


@20 A

>10 sec

Surge life
(min operations)



@60 A

<3 sec

@10A, 10 x 1000 µsec

unlimited



@100A, 10 x 1000 µsec

>300



@1Arms, 1 sec

>60



@10 Arms, 1 sec

>20



1total surge rating is 2x listed with respect to ground during a simultaneous surge
2service life requirement as per Bellcore TR-NWT-000g74
3pin alloy refers to tip and ring pins. Unless otherwise noted, all ground pins are tin
